1939-1952 Farmall M & MV Tractor Owners/Operators Manual the Owners Manual is the same exact manual received when the tractor was new, it covers all aspects of your tractor.Some of the subjects covered are Maintenance Procedures, Lubrication, Special Attachments, Specifications & Operating your Tractor.

* INSTANT DOWNLOAD NO WAITING
* PDF FORMAT

---------------------------------------------------------------------------------------------

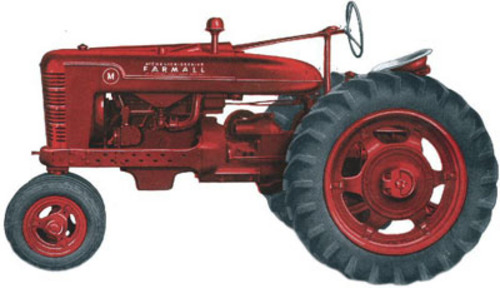

Farmall M Tractor Specs

Model introduced 1939
Model discontinued 1952
Model status Discontinued
No. produced 282,911 (includes Farmall M-MD-MV-MDV)
Preceded by McCormick-Deering Farmall F-30
Superseded by McCormick Farmall Super M

Engine Specification
Engine make International
Engine model C-248
Fuel type gasoline
Power hp 36 belt, 33 drawbar
Governed rpm 1450
Displacement cu in /(litre) 248 ci
No. of Cylinders 4
Bore in (mm) 3.875 in
Stroke in (mm) 5.25 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA

Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 5
Reverse 1
Drive 2-WD

General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 6.00-16 4-ply
Rear 11-38 6-ply
Tractor Dimensions
Length (inches/metres) 132 in
Width (inches/meters) 85 in
Height (inches/meters) 76 in
Weight (nominal) lb/kg 4415 lb
Turning circle (nominal) inches/meters 17 ft
Wheelbase 89 in

Other info
Factories Tractor Works, Chicago, Illinois
Plow rating 3-14"
Nebraska Tests No. 328
Approximate Cost new in (year) $1112 (1941), $2346 (1952)

---------------------------------------------------------------------------------------------
Farmall MV Tractor Specs

Model introduced 1942
Model discontinued 1952
Model status Discontinued
Preceded by McCormick-Deering Farmall F-30 Cane Tractor
Superseded by McCormick Farmall Super MV

Engine Specification
Engine make International
Engine model C-248
Fuel type gasoline
Power hp 36 belt, 33 drawbar
Governed rpm 1450
Displacement cu in /(litre) 248 ci
No. of Cylinders 4
Bore in (mm) 3.875 in
Stroke in (mm) 5.25 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA

Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 5
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 7.50-20 4-ply
Rear 13.6-38 6-ply

Tractor Dimensions
Length (inches/metres) 147 in
Width (inches/meters) 86 in
Height (inches/meters) 90 in
Weight (nominal) lb/kg 5505 lb
Turning circle (nominal) inches/meters 25 ft
Wheelbase 92 in

Other info
Factories Tractor Works, Chicago, Illinois
Plow rating 3-14"
Nebraska Tests No. 328
