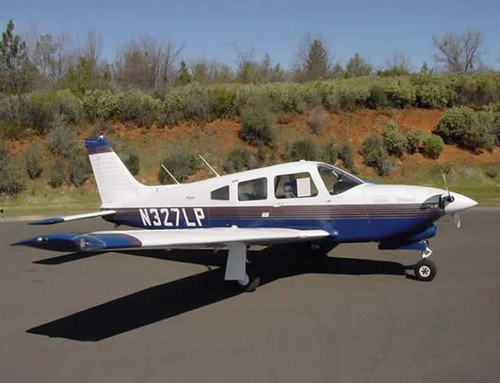

PIPER ARROW IV PARTS CATALOG- PA-28RT-201 ARROW IV--PA-28RT-
- Add To Basket
Instant Download from themanualexperts, digital version
This illustrated Parts Catalog is designed to provide simple but positive identification of replacement parts for the Piper Model PA-28RT-
201 Arrow IV and PA28RT-201T Turbo Arrow IV, manufactured by the Piper Aircraft Corporation of Vero Beach, Florida.
NOTE: UNDER NO CIRCUMSTANCES SHALL THIS CATALOG BE USED FOR RIGGING AND INSTALLATION PURPOSES.
It is suggested that this catalog be thoroughly studied to determine its arrangement prior to its utilization.
1. The catalog is divided into fourteen (14) major sections described as follows:
a. Section I to XIII inclusive contains all replacement parts for the complete airplane. Each section is subdivided and each division
includes an illustration and a parts listing.
b. Section XIV is the Miscellaneous Group. This group includes an illustration and parts list for the Placards and Exterior Stencils
and a listing of the Optional Equipment Kits, Repair Kits and Special Tools.
2. The following is a brief explanation of the columns in the parts lists: (Refer to EXAMPLE below).
a. The FIGURE AND INDEX NUMBER column indicates the illustration figure number and its part index number. EXAMPLE:
(2-1), the 2 is the figure number and the 1 is the index number. The figure number appears only at the top of each parts list
b. The PART NUMBER column contains the identifying number of the replacement part and this number must be shown on all
c. The CODE column is for the purpose of indicating special uses of the part. An explanation of the letter code used is shown
on the grid (page) preceding each parts listing and pertains to that listing only.
ALL PARTS CODED WITH A W MUST BE PURCHASED FROM
PIPER AIRCRAFT CORPORATION, LOCK HAVEN, PENNA.
ALL PARTS NOT CODED WITH A W MUST BE PURCHASED FROM
PIPER AIRCRAFT CORPORATION, VERO BEACH, FLORIDA.
d. The NOMENCLATURE column indicates the part name. This name must be shown on all Parts Orders.
e. The NO. REQ. (Number Required) column represents the total quantity of parts used per figure when the part is not indented
and the quantity of parts used per assembly when the part is indented. The symbol AR listed in this column means As
f. The SERIAL NUMBERS AFFECTED column indicates the part application by airplane serial number.
and Part No. SERIAL NUMBERS
Index Number Code NOMENCLATURE Req. AFFECTED
2-1 XXXXX-XX DOOR ASSEMBLY - Baggage compartment X
-2 XXXXX-XX * TUBE ASSEMBLY - Baggage door latch X
-3 XXXXX-XX * * CLEVIS - Door latch tube assembly X
-4 XXXXX-XX * * CLIP - Door latch tube assembly X
In the Nomenclature column, the next higher assembly relationship of items covered is shown by the degree of indention
of each item and is indicated by an asterisk (*). One asterisk signifies one indention, two signifies two indentions, etc. The
example listing above is interpreted as follows:
If the DOOR ASSEMBLY (not indented) is ordered, it will include the three items indented under the Door Assembly.
If the TUBE ASSEMBLY (indented one space) is ordered, it will include the two items indented under the Tube Assembly.
If you want only a CLEVIS or CLIP, you order only that item.
We are a Certified Disadvantaged Business Enterprise under FAA/DOT 49 CFR 26. All purchases from us are qualified for DBE goal credit. If your firm or business is required to meet a certain DBE, minority or small business goal, please let us know so that we can provide you with proof of our FAA DBE Certification. We are an expert in the Aviation Information Technology particularly dedicated in the preservation of technical manuals from motorcycles, automobiles to airplanes Manuals. I am an Eagle, an Embry Riddle Aeronautical University Alumni with strong aviation background and I love to ride motorcycle - my newest ride is a Kawasaki Ninja 650R. And yes of course I do like flying and even though I am unable to fly because this harsh economy I still plan on obtaining my Private Pilot License, right now I only have a limited number of flight hours.
While some manuals may appear similar for the same make and model of aircraft, each manual is unique and contains specific information about a particular aircraft, such as the equipment installed and weight and balance information. Manufacturers are required to include the serial number and registration on the title page to identify the aircraft to which the manual belongs. By purchasing this manual you agree to hold us harmless and indemnify us from any third party claims arising from the use of this manual. If you have insufficient experience or doubts your ability to do the work, all adjustments, maintenance, and repair should be carried out only by qualified mechanics. In order to perform the work efficiently and to avoid costly mistakes, read the text, thoroughly familiarize yourself with the procedures before starting work, and then do the work carefully in a clean area. Whenever special tools or equipment are specified, do not use makeshift tools or equipment. Precision measurements can only be made if the proper instruments are used, and the use of substitute tools may adversely affect safe operation.
