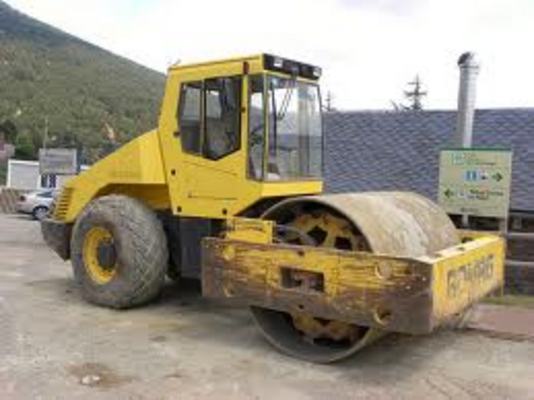

BOMAG Single Drum Roller SERVICE MANUAL BW 216 D-3 BW 216 DH-3/PDH-3 BW 219 DH-3/PDH-3 BW 225 D-3/PD-3

Instant Download

Tradebit buyer protection fee included.
Pay with Credit Card

Instant Download from manual-depo, digital version

Pay for BOMAG Single Drum Roller SERVICE MANUAL BW 216 D-3 BW 216 DH-3/PDH-3 BW 219 DH-3/PDH-3 BW 225 D-3/PD-3
5.3292 MB PDF File

Single Drum Rollers
BW 216 D-3, BW 216 DH-3/PDH-3
BW 219 DH-3/PDH-3, BW 225 D-3/PD-3

Table of contents
Foreword A 1
Documentation A 2
General A 4
List of components B 1
Technical data B 2
Maintenance C1
Maintenance table C2
DEUTZ Diesel engine D 1
Service side D 2
Starter side D 3
Lubrication oil circuit D 4
Coolant circuit D 5
Checking and adjusting the valve clearance D 6
Plug-in injection pump D 8
Travel system E 1
Travel pump E 4
Servo control E 15
Multi-function valves E 17
Charge pressure relief valve E 20
Axle drive motor E 21
Drum drive motor with reduction gear E 23
Flushing valve E 26
Trouble shooting travel system ETr 1
Vibration F 1
Vibration pump F 4
Control F 8
High pressure protection F 8
Charge pump F 8
Vibration motor F 9
Trouble shooting vibration FTr 1
Steering G 1
Steering pump G 3
Steering valve G 5
Articulated joint G 7
Trouble shooting steering GTr 1
Electrical system H 1
Power supply H 2
Ignition and starter circuit H 4
Fault monitoring board H 7
Brakes H 11
Speed range selector H 14
Anti Spin Control (ASC) H 18
Vibration H
This training manual was specifically written for the new single drum rollers BW 216 D-3, BW 216 DH-
3/PDH-3, BW 219 DH-3/PDH3 and BW 225 D-3/PD-3 of generation 3. This range of single drum rollers
is the consequent further development of the machine range of heavy single drum rollers of generation
2 and is also an adaptation to the presently most modern status of technology.
