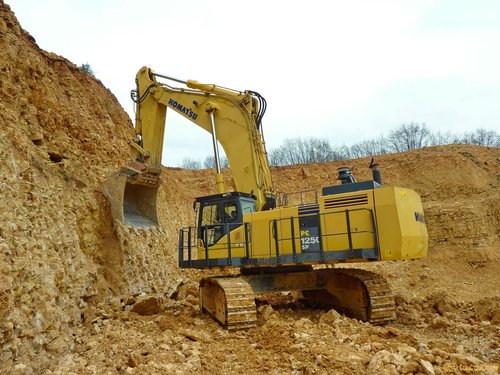

Komatsu PC1250-7 field assembly manual
This manual applies to following serial numbers.
PC1250- 20001 and up
PC1250SP-20001 and up
PC1250LC-20001 and up
This is the factory manual, high quality PDF.
Contents:
Outline of work process
Tool list
Transportation posture, dimensions and weight of main components
Outline of size of work place
Precautions during operation
List of parts sent individually
Detailed procedure for parts assembly work
Procedure for flushing hydraulic circuit
procedure for bleeding air from hydraulic circuit
procedure for adjusting track link
Procedure for inspecting oil, water, fuel
Field assembly inspection report
