TDA4220-X Datasheet
Scans, 15 pages
Table of Contents
FM-IF IC with Search Tuning Stop Pulse, Field Strength Indicator, Mute Setting and Multipath Detector
Table of Contents Page A.1
Functional Description, Application Page 8.2
Circuit Description Page C.3

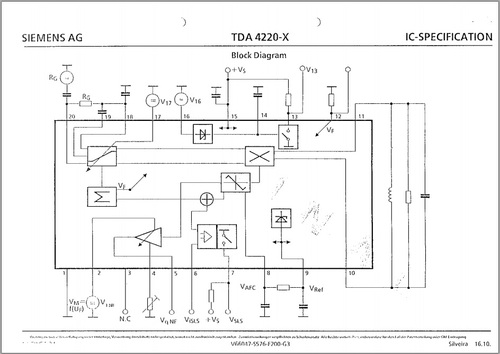

Block Diagramm Page D.4
Pin Assignment Page E.5
Pin Description Page F.6
Package Outline Page G.7
Absolute Maximum Ratings Page H.8
Operational Range Page I.9
AC/DC Characteristics Tamb = -40°C to +85°C Page K.10 ... K.11
AC/DC Characteristics Tamb = +25°C Page K.12 ... K.13
Test Circuit Page L.14 ... L.15
