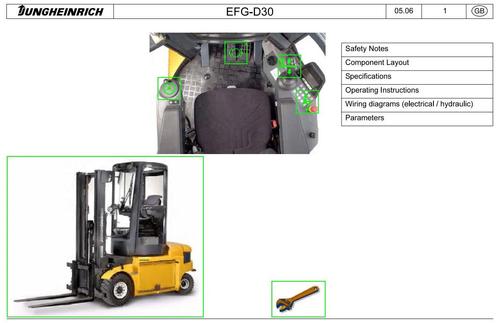

Jungheinrich Electric Lift Truck Type EFG D30 (12.2005-12.2008) Workshop Service Manual
Original factory manuals for Jungheinrich Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck. All Manuals Printable and contains Searchable Text
Covered models:
D30 (12.2005-12.2008)
Format: PDF, 352 Pages
Language: English
Contents:
Safety Notes
Component Layout
Specifications
Operating Instructions
Wiring diagrams (electrical / hydraulic)
Parameters
Wheel brake
-Multi Plates
Brake system
-Functional Description
-Manual release of the spring-loaded brake
-Bleeding
-Spring loaded cylinder
Switches I Switch Mechanism
- Contactors
Misc. Electrical
-Truck block diagram
- Fuse
Wiring
- Energy chain
- Connector / binder
Cabin
- Disassembly/assembly
- Rotate (manual)
-Toothed belt
Hydraulic system
-Pump motor
-Bleeding
-Valve block
Commissioning
-Commissioning (see Operating Instructions, Chapter C)
Maintenance
-Regular safety inspection (at least annually)
-Maintenance checklist B
-Maintenance checklist C
-Maintenance checklist (cold store) B
-Maintenance checklist (cold store) C
Electrical
- Block diagram / Steering system functional description
Steering transmission
-Motor
-Actual value sensor
-Steering controller
Hydraulic system
-Component Layout
-Steering wiring diagram
-Valve block
Steering axle
- Design and functional description
