Jungheinrich Electric Reach Truck: ETV114N, ETV116N, ETV118N, ETV120N (from 05.2012) Workshop Service Manual

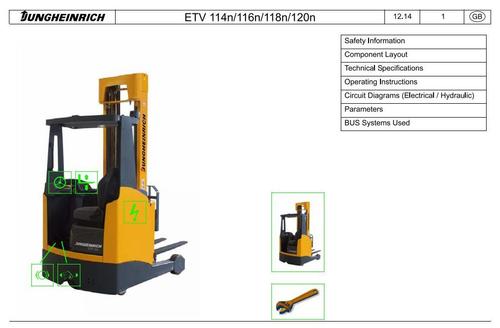

Original Illustrated Factory Workshop Service Manual for Jungheinrich Electric Reach Truck Type ETV.

Original factory manuals for Jungheinrich Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck. All Manuals Printable and contains Searchable Text

Covered models:
ETV114N (from 05.2012)
ETV116N (from 05.2012)
ETV118N (from 05.2012)
ETV120N (from 05.2012)

Language: English
Format ZIP, Contains Set of PDF Manuals:

1. Operating Instructions, PDF, 126 Pages
2. Service Manual, PDF, 347 Pages
Contents:
Safety Information
Component Layout
Technical Specifications
Operating Instructions
Circuit Diagrams (Electrical / Hydraulic)
Parameters
BUS Systems Used
Drive brake
- Parking brake
Display
-Display
-Diagnostics with JULIA
Controls
-CANCODE
Truck lighting
- Beacon (LED)
Misc. electrical
- Colour coding key See 3 6900.08
- Fuses, see Operating Instructions
Wiring
-Plugs / connectors
-Pin layout of Saab connectors
Electrical system
-Traction controller
Mech. transmission
-Transmission
Drive wheel
-Drive wheel assembly
Battery compartment
- Battery interlock
Labels I documentation
-Operating Instructions
-Electrical / hydraulic diagrams
-Component part number plate
Protective mechanisms
-Support columns
Controls
- Solopilot
Electrical system
-Hydraulic controller
Mast Hydr.
- For masts, adjustment and maintenance see service manual G 1001
Hydraulic System
- For hydraulic connector system see service manual I 4001
- Manifold
Load handler
- For fork tines see service manual G1 6401.01
Mast reach (Retrak)
- Mast support adjustment
Maintenance
- Notes on how to avoid malfunctions and material damage when cleaning an industrial truck see service manual Z 0000.15
- Notes on how to avoid accidents and material damage during maintenance, test and repair work on industrial trucks with electronic components see service manual J 6900-09
Electrical system
- Steering controller
