TCM Electric Lift Truck 1Q2 series: FHB20-E1, FHB25-E1, FHB30-E1, FHB25-E1L, FHB30-E1W Workshop Service Manual
Original factory manuals for TCM Lift Trucks contains high quality images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, without restrictions, contains Searchable Text and bookmarks
Covered models:
FHB20-E1 (SN from 1Q2E700001 to 1Q2E770000)
FHB25-E1 (SN from 1Q2E700001 to 1Q2E770000)
FHB25-E1L (SN from G1Q2E710001 to G1Q2E770000)
FHB30-E1 (SN from G1Q2E710001 to G1Q2E770000)
FHB30-E1W (SN from G1Q2E710001 to G1Q2E770000)
Language: English
Format: PDF, 549 Pages
Compatible WIN/Mac
Contents:
GENERAL ONFORMATION
MAINTENANCE
CONTROL SYSTEM
BATTERY CHARGER
ELECTRIAL SYSTEM
MOTOR MECHANISM
DIFFERENTIAL CARRIER
FRONT AXLE
REAR AXLE
BRAKE SYSTEM
STEERING SYSTEM
HYDRAULIC SYSTEM
LOADING MECHANISM

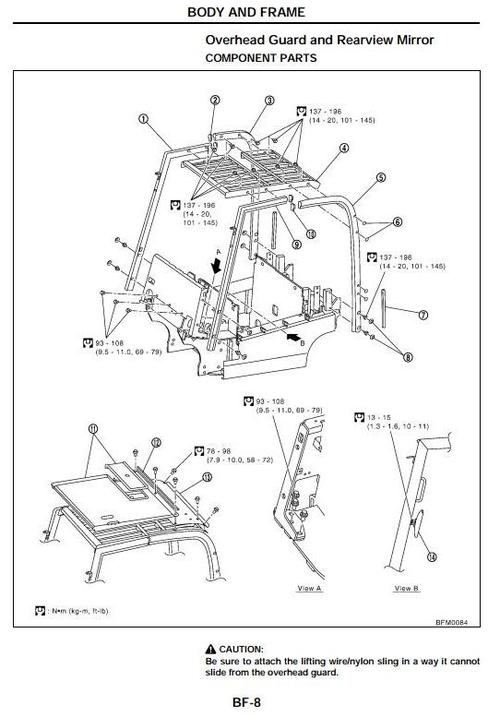

BODY AND FRAME
OPTIONS
BULLETINS
