PowerTech 6090 Diesel Engines (Stage II Emissions) Level 24 ECU Technical Service Manual (CTM115419)
Illustrated Factory Component Technical Service Manual for PowerTech 6090 Diesel Engines (Stage II Emissions) Level 24 ECU (John Deere Diesel OEM Engines)
This manual contains high quality images, circuit diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.
Language: English
Format: PDF, 1413 pages
Covered models:
6090
Contents:
Foreword

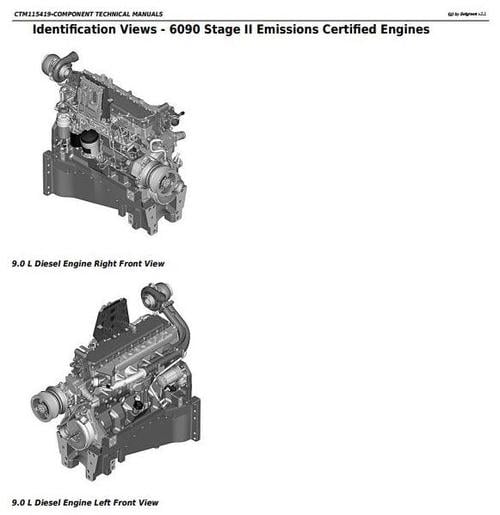

Identification Views - 6090 Stage II Emissions Certified Engines
Related Manuals
Training Information
Definition of Terms
General Information
Safety
Engine Identification
Fuels, Lubricants, and Coolant
Repair and Adjustments
Engine Rebuild
Cylinder Head and Valves Repair and Adjustment
Block, Liners, Pistons, and Rods Repair and Adjustment
Crankshaft, Bearings, Flywheel Repair and Adjustment
Camshaft and Timing Gear Train Repair and Adjustment
Lubrication System Repair and Adjustment
Cooling System Repair and Adjustment
Air Intake and Exhaust System Repair and Adjustment
Electronic Fuel System Repair and Adjustments
OEM Starting and Charging Systems Repair and Adjustment
Electrical Engine Control Repair and Adjustment
Connector Repair and Adjustment
Theory of Operation
Base Engine Operation
Cooling System
Lubrication System
Electronic Fuel System
Air Intake and Exhaust System
Electrical Control System
Diagnostics
Observable Diagnostics and Tests
Checks, Tests, and Procedures
Diagnostic Instructions and Information
Engine Position Diagnostics
Air Intake and Exhaust System Diagnostics
Lubrication and Cooling System Diagnostics
Fuel System Diagnostics
Engine Control Unit (ECU) and Throttle Diagnostics
Application Diagnostics
Communication Diagnostics
Other Materials
Lubricants, Sealants, Cleaners
Specifications
Repair and General OEM Specifications
Diagnostic Specifications
