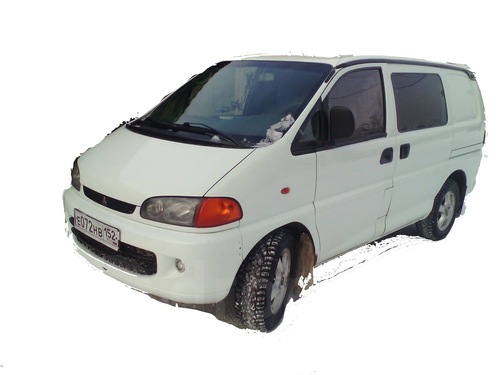

Mitsubishi L400 1994-1999 Factory Service & Shop Manual

Mitsubishi L400 1994-1999 Factory Service & Shop Manual
Complete workshop & service manual with electrical wiring diagrams for Mitsubishi L400 1994-1999. It's the same service manual used by dealers that guaranteed to be fully functional and intact without any missing page.

This Mitsubishi L400 1994-1999 service & repair manual (including maintenance, overhaul, disassembling & assembling, adjustment, tune-up, operation, inspecting, diagnostic & troubleshooting…) is divided into different sections. Each section covers a specific component or system with detailed illustrations. A table of contents is placed at the beginning of each section. Pages are easily found by category, and each page is expandable for great detail. The printer-ready PDF documents work like a charm on all kinds of devices.

MAKE: Mitsubish
YEAR: 1994, 1995, 1996, 1997, 1998, 1999 (2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 applicable)
MODEL: Delica L400 (a.k.a. Space Gear, Starwagon)

EXCERPT:
MPI - Troubleshooting
INSPECTION PROCEDURE USING AN ANALYZER
AIR FLOW SENSOR (AFS)
Adjustment procedure not listed below is the same as before.
Alternate Method (Test harness not available)
1. Connect the analyzer special patterns pickup to engine-ECU terminal 90.
TOP DEAD CENTER SENSOR AND CRANK ANGLE SENSOR
Adjustment procedure not listed below is the same as before.
Alternate Method (Test harness not available)
1 . Connect the analyzer special patterns pickup to engine-ECU terminal 88. (When checking the top dead center sensor signal wave pattern.)
2. Connect the analyzer special patterns pickup to engine-ECU terminal 89. (When checking the crank angle sensor signal wave pattern.)
File Data

This file is sold by zfs, an independent seller on Tradebit.

File Size 1 megabytes
File Type PDF
