Rohde-Schwarz UPA UPA3 UPA4 Service manual (German only)
Rohde-Schwarz UPA UPA3 UPA4 Service manual (German only)
part# 372.9265.24-03- for R&S UPA 372.6014.02/.03/.04

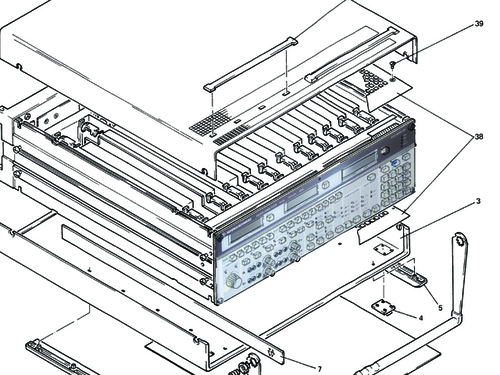

Complete service manual with schematics an layouts for Rohde-Schwarz UPA UPA3 UPA4
Band 1 and Band 2
585 pages
225 MB .PDF file
300x300 DPI scan, lossless JPEG2000 compression
Tesxt pages in bitmap, graphics in grayscale
Includes colour 600x600 DPI German side of Users guide 372.7279.00 (plastic pull-out tab from under the instrument)
Includes colour folder picture scan and folder inserts
GER contents
Inhaltsübersicht für die UPA-Beschreibung
Servicehandbuch Band 1
- Wartung
- Serviceanleitung Gesamtgerät
- Serviceanleitung Baugruppen
- Generator UPA-B6 373.0010.02
- Eingangsteil 372.6814.02
- Spezialfilter UPA-B2 373.1216.02
- Spezialfilter UPA-B3 373.1545.02
Servicehandbuch Band 2
- Filter-/Gleichrichterplatte 372.7610.02
- Klirrfaktormesser UPA-B8 373.1616.02
- Wow & Fluttermeter UPA-B9 373.2612.02
- A/D-Wandler/Frequenzzähler 372.7910.02
- Rechner 372.8317.02
- Anzeige/Tastenfeld 372.8917.02
- Anschlußplatte 372.8669.02
- DC-Ausgang UPA-B1 373.2512.02
- Netzteil 372.8817.02
