Siemens Mess-sender W2100
Gerätehandbuch S44034-W2100-A302-51-18
RC Oscillator W2100
Technical Manual S44034-W2100-A302-51-7618
(User and service manual)
94 pages, German and English language
Seamless scans

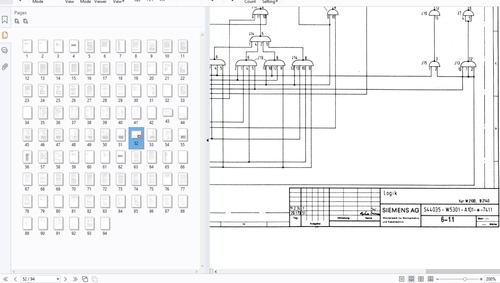

text, images and schematics 300dpi grayscale, lossless LZW tiff scans, lossless ZIP PDF compression, 71 MBytes
Retouched and normalized, print ready.
TABLE OF CONTENTS
ENG
TABLE OF CONTENTS
1. Description
1.1 Uses
1.2 Electrical Data
1.3 Method of Functioning
1.3.1 The Variable Oscillator
1.3.2 Spot Frequencies
1.3.3 Attenuator Assembly
1.3.4 Output Circuit
1.3.5 The RC Oscillator as Amplifier or Attenuator
1.3.6 Power Supply
1.4 Designations, Dimensions and Weights
2. Operating Instructions
3. Maintenance
GER
Inhalt
1. Beschreibung
1.1 Anwendung
1.2 Elektrische Werte
1.3 Arbeitsweise
1.3.1 Der variable Oszillator
1.3.2 Festfrequenzen
1.3.3 Die Teilerbaugruppe
1.3.4 Die Ausgangsschaltung
1.3.5 Verwendung als Verstärker oder Abschwächer
1.3.6 Das Netzteil
1.4 Bezeichnungen, Abmessungen, Gewichte
2. Bedienungsanleitung
3. Wartung
